- Modell:
- Pinto Pulley
- Marke:
- DMM
- Familie:
- Rollen
- Ordnung:
- PSA gegen Absturz
- Art.-Nr. d. Marke:
- PUL110
- Normen:
- DIN EN 12278, NFPA 1983, DIN EN 795 B
- Lebensdauer:
- —
Max. Lebensdauer (inkl. Lagerzeit) ab Herstellung gerechnet. Beachten Sie dazu auch die Herstellerinfos (DMM) der jeweiligen Gebrauchsanleitung.
- Nutzungsdauer:
- bis zum Ende der Lebensdauer
Max. mögliche Nutzungsdauer ab Inbetriebnahme gerechnet. Auch hier ist zusätzlich die Gebrauchsanleitung von DMM zu beachten.
Produktbeschreibung der Marke

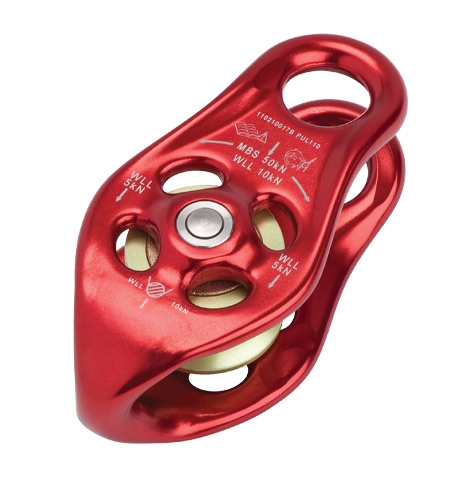

With hardly a straight line in sight, the hot forged curves and fairlead flares of our Pinto Pulley make for an ultra efficient, ‘textile friendly’ environment. Clip, hitch, splice or thread the anchor holes or the becket to give numerous work and rescue configurations (textile attachments can help minimise any torsional build up in closed systems). An indispensable component of the DMM/Teufelberger CE lanyard system, but equally at home on all other mechanical advantage systems or lifelines. Comes with minimum fuss, highly efficient Oilite bushings. Spacers are available to support the anchor holes when textile connecting elements compress the side plates.
- Conforms to EN12278:2007 (Pulleys), EN795(B):2012 (Anchor devices) and NFPA 1983 (2012 Edition) G Rating
- Hot forged aluminium side plates provide strength and durability
- Heat treated stainless steel spindles for high strength and corrosion resistance
- Riveted and tamperproof assembly
- Pre lubricated Oilite bushing for smooth operation and minimal maintenance
- Recommended for aborist, rescue, hauling and many applications where friction reduction is required
- Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
- Also available in Black, Olive and Sand in our Tactical range
- Individually marked for traceability
